Workflow Overview¶

MIRFLOWZ consists of a main Snakefile and four functional modules. In the Snakefile, the configuration file is validated and various modules are imported. In addition, a handler for both, a successful and a failed run are set. If the workflow finishes without any errors, all the intermediate files are removed, otherwise, a log file is created.

The modules (1) process the genome resources, (2) map and (3), and (4) are described in detail below.

Prepare module¶

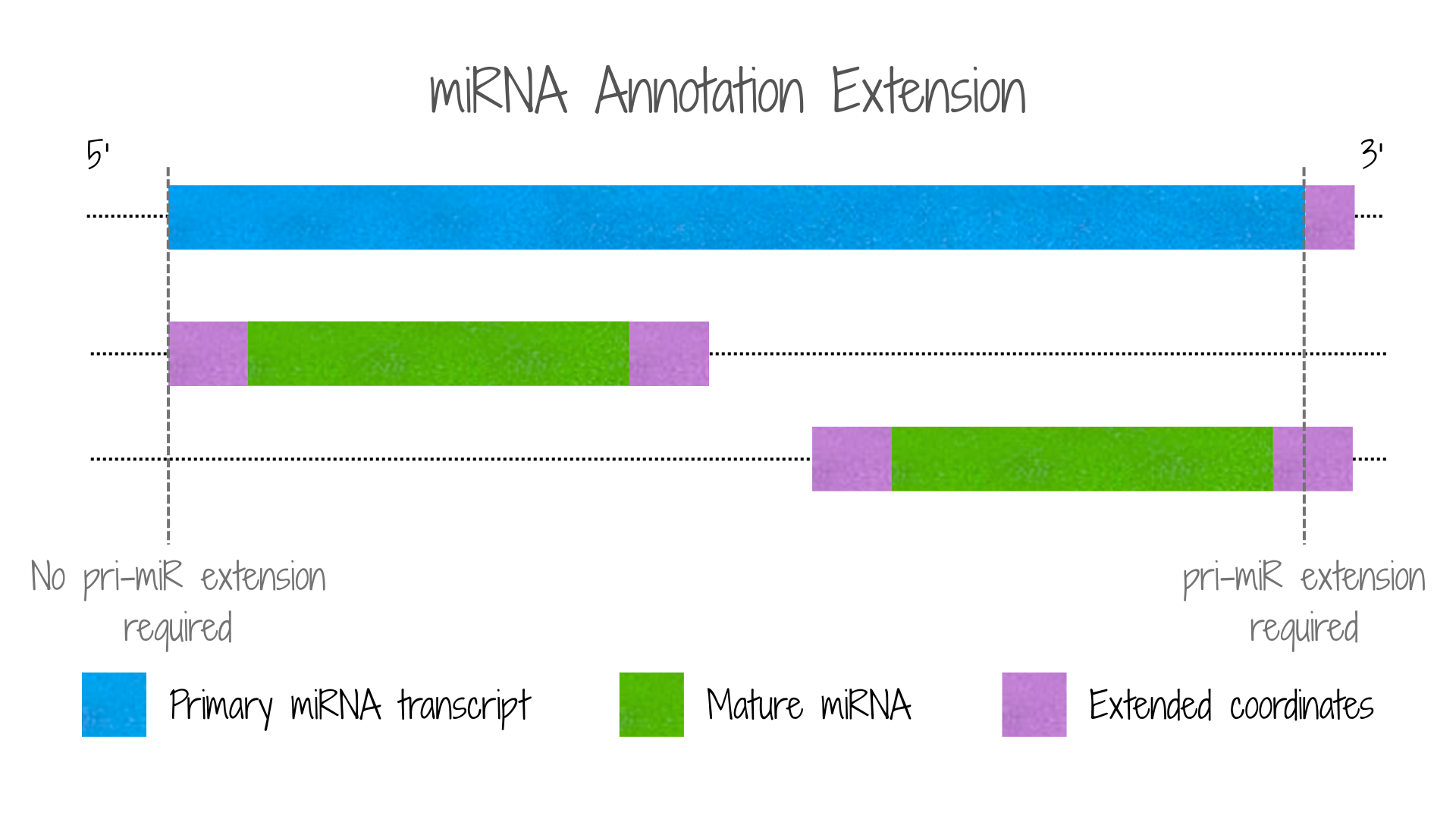

MIRFLOWZ initially processes and indexes the genome resources provided by the user. The regions corresponding to mature miRNAs are extended by a fixed but user-adjustable number of nucleotides on both sides to accommodate isomiR species with shifted start and/or end positions. If necessary, pri-miR loci are extended to adjust to the new miRNA coordinates.

In addition, to account for the different genomic locations a miRNA sequence can be annotated, the name of these sequences are modified to have the format SPECIES-mir-NUMBER[LETTER]-# for pri-miRs, and SPECIES-miR-NUMBER[LETTER]-#-ARM or SPECIES-miR-NUMBER[LETTER]-# for mature miRNAs with both or just one arm respectively, where:

# is the paralog number (replica/locus index), included when multiple loci express the same or similar miRNAs
LETTER denotes a sequence variant of mature miRNA (paralogous variant with similar but not identical sequences)

Wanna see a more technical step by step explanation?

For a detailed description of this module, with examples and explanations for each rule, see the prepare module page.

Map module¶

The user-provided short-read small RNA-seq libraries undergo quality filtering (skipped if libraries are provided in FASTA rather than FASTQ), followed by adapter removal. The resulting reads are independently mapped to both the genome and transcriptome using two distinct aligners: Segemehl and our in-house tool Oligomap.

Segemehl implements a fast heuristic strategy that returns the alignment(s) with the smallest edit distance. Oligomap, on the other hand, implements a slower and more restricted approach that reports all the alignments with an edit distance of at most 1. The combination of the fast and flexible results and the strict selection ensures results with a higher fidelity than if only one of the tools was to be used.

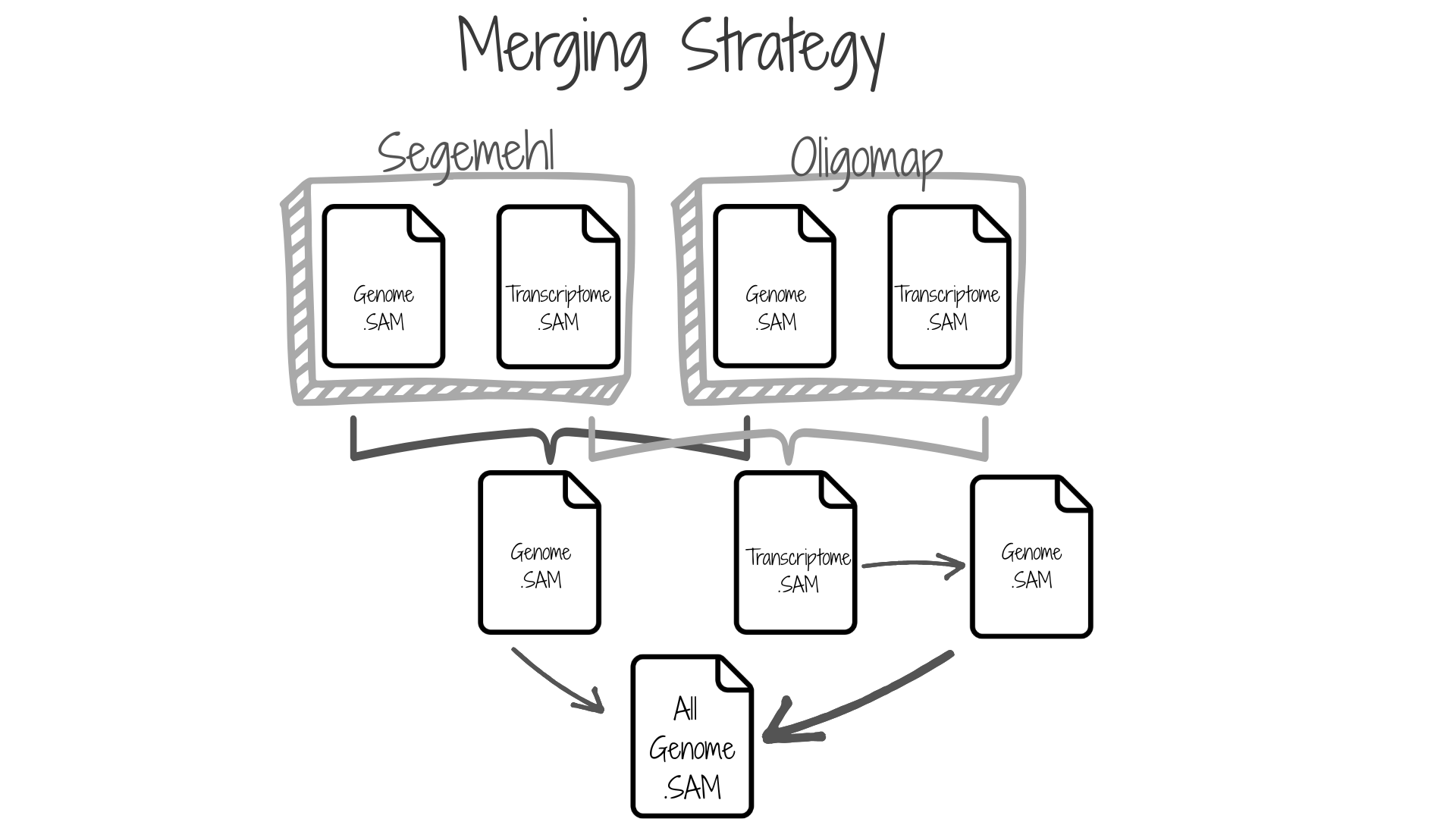

Two merging steps are done in order to have all the alignments in a single file.

The transcriptome and the genome mappings from both aligners are fused and only those alignments with a smaller NH than the one provided are kept.
Transcriptomic coordinates are turned into genomic ones and alignments are combined into a single file.

Duplicate alignments resulting from the partially redundant mapping strategy are discarded and only the best alignments for each read are retained (i.e. the ones with the smallest edit distance. In addition, and due to the alignment's aggregation, a second filtering according to the new NH is performed: if a read has been aligned beyond a specified threshold, it is removed due to (1) performance reasons as the file size can rapidly increase, and (2) the fact that each read contributes to each count 1/n where n is the number of genomic loci it aligns to and a large n makes the contribution negligible.

A final filter is made to further increase the classification accuracy and reduce the amount of multimappers (defined here as alignments of the same read aligning to different genomic loci with the same edit distance). Given that isomiRs are known to contain more indels than mismatches when compared to the canonical sequence they come from, as demonstrated by Neilsen et al. (2012), Saunders et al. (2017), and Schmauch et al. (2024), only those multimappers that contain a higher or equal amount of indels compared to mismatches are retained. Note that some multimappers might still be present if the number of indels is the same across alignments.

Wanna see a more technical step by step explanation?

For a detailed description of this module, with examples and explanations for each rule, see the map module page.

Quantify module¶

isomiRs notation

A sequence is considered to be an isomiR if it has a shift on either end, an indel and/or a mismatch on its sequence when compared to the canonical miRNA it maps and intersects with.

MIRFLOWZ employs an unambiguous notation to classify isomiRs using the format miRNA_name|5p-shift|3p-shift|CIGAR|MD|READ_SEQ, where 5p-shift and 3p-shift represent the differences between the annotated mature miRNA start and end positions and those of the read alignment, respectively.

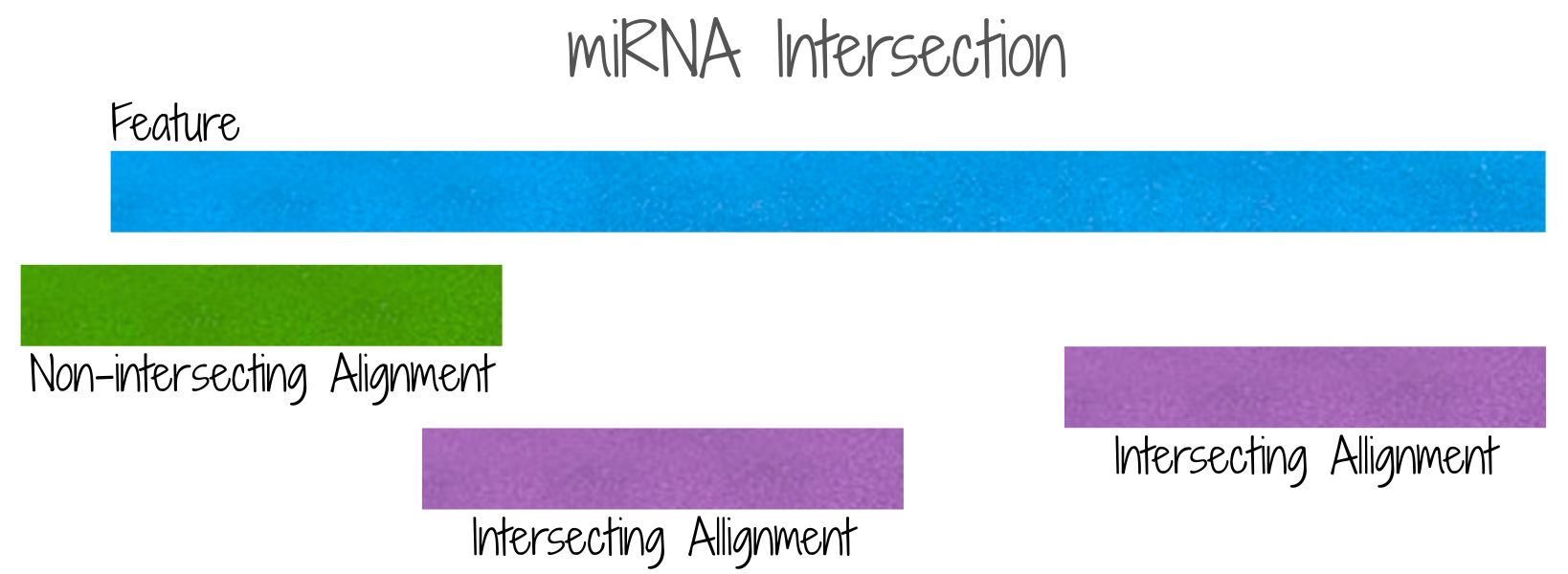

The filtered alignments are subsequently intersected with the user-provided, pre-processed miRNA annotation files using bedtools. Each alignment is classified according to the miRNA species it fully intersects with in order to do the counts.

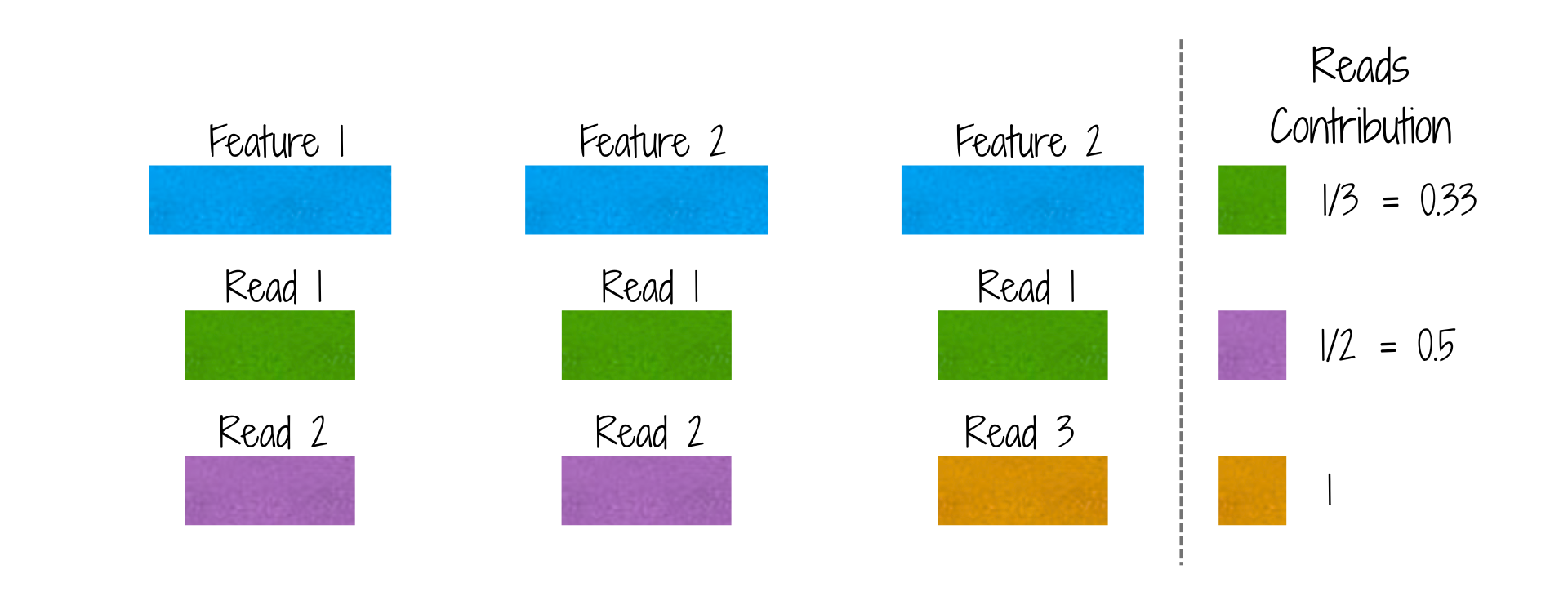

Counts are tabulated separately for reads consistent with either miRNA precursors, mature miRNA and/or isomiRs, and all library counts are fused into a single table. Note that an alignment is only counted towards a given miRNA (or isomiR) species if one of its alignments fully falls within the (previously extended) locus annotated for that miRNA. Specifically, reads contribute with 1/n for each miRNA for which that is the case, where n is the total number of genomic loci the read aligns to. Under this criterion, the precursor counts contain reads that intersect with its mature arm(s), its hairpin sequence and/or the whole precursor itself

Wanna see a more technical step by step explanation?

For a detailed description of this module, with examples and explanations for each rule, see the quantify module page.

ASCII-style alignment pileups module¶

Finally, to visualize the distribution of read alignments around miRNA loci, ASCII-style alignment pileups are optionally generated for user-defined regions of interest.

>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>>> test-mir
....>>>>>>>>>>>>>>>>>>>>>>..................................................... test-mir-5p
.......................................................>>>>>>>>>>>>>>>>>>>>>... test-mir-3p
GGGATGAGGTAGTAGGTTGTATAGTTTTAGGGTCACACCCACCACTGGGAGATAACTATACAATCTACTGTCTTTCCTA test_ref:3618-3696:+
ACCATGAGGTAGTAGGTTGTATAGTT..................................................... 1
..CATGAGGTAGTAGGTTGTATAGTT..................................................... 10
..GA-GAGGTAGTAGGTTGTATAGTT..................................................... 2
...A-GAGGTAGTAGGTTGTATAGTT..................................................... 19
....TGAGGTAGTAGGTTGTATAGTT..................................................... 17
.....GAGGTAGTAGGTTGTATAGTT..................................................... 33
......AGGTAGTAGGTTGTATAGTT..................................................... 9
......AGGTAGTAGGTTGTATAGTTT.................................................... 2
.......GGTAGTAGGTTGTATAGTT..................................................... 7
..................................................GATAACTATACAATCTACTGTCTT..... 1
.....................................................AACTATACAATCTACT.......... 1
.......................................................CTATACAATCTACTGTCTTTCT.. 28
.......................................................CTATACAATCTACTGTCTTTC-T. 22
.......................................................CTATACAATCTACTGTCTTTCC.. 19
.......................................................CTATACAATCTACTGTCTTTC... 12
.......................................................CTATACAATCTACTGTCTTTCTT. 2
.......................................................CTATACAATCTACTGTC....... 1
.......................................................CTATACAATCTACTGTCTT..... 1
.......................................................CTATACAATCTACTGTCTTTCG.. 1
........................................................TATACAATCTACTGTCTTTCT.. 4
........................................................TATACAATCTACTGTCTTTC-T. 4
........................................................TATACAATCTACTGTCTTTC... 2
........................................................TATACAATCTACTGTCTTTCC.. 1
........................................................TATACAATCTACTGTCTTTCCT. 1
