Prepare Module¶

Welcome to the technical documentation for the prepare module. This page aims to be a detailed documentation of each rule within the module by stating its inputs, outputs (and how they relate to other rules), configurable parameters, and the software used. Moreover, when needed, there will be explanations and examples of what that particular rule does.

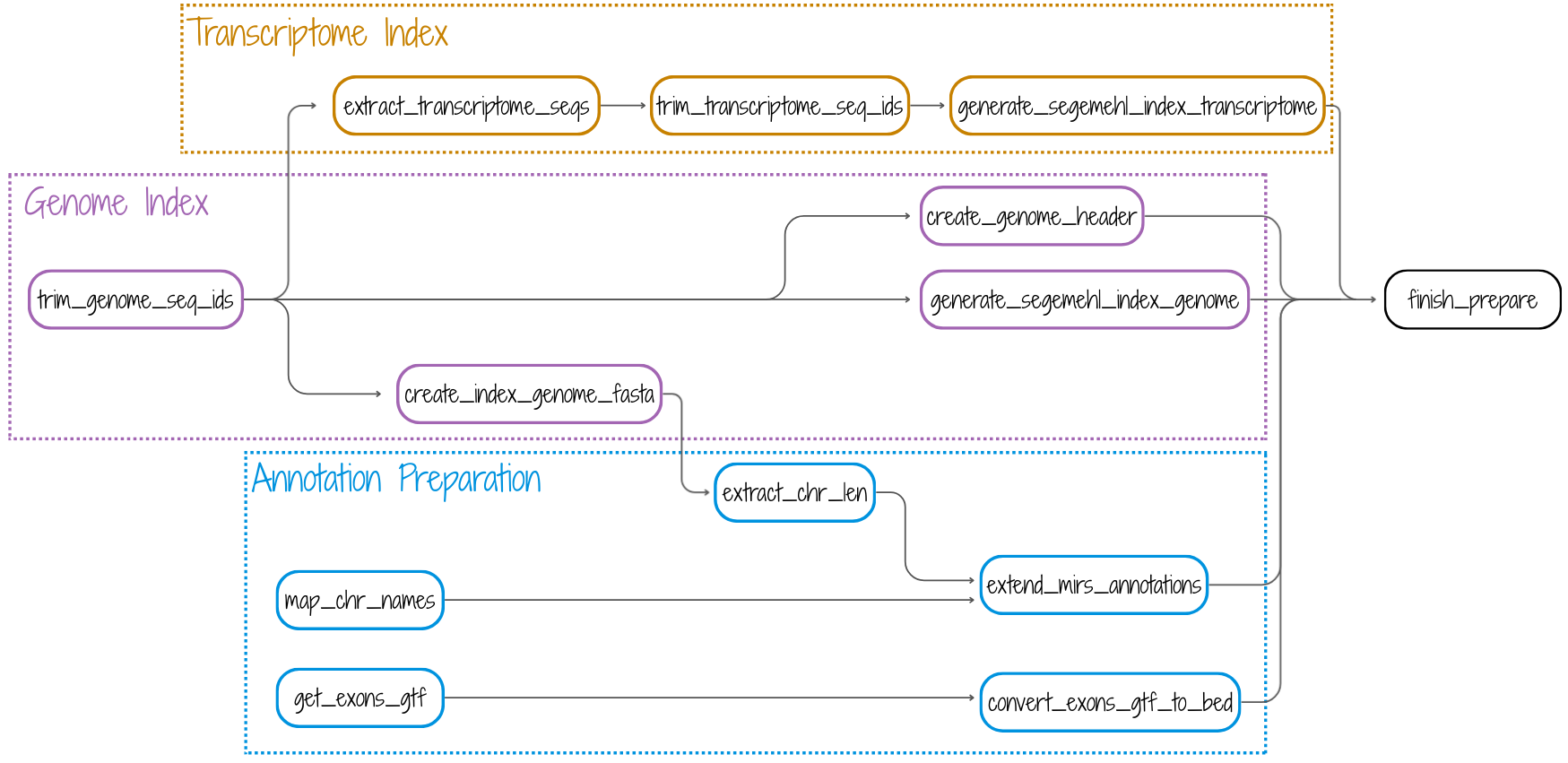

The schema below is a visual representation of the individual module steps and how they are related.

Third-party software used¶

Tag lines were taken from the developers' websites (code repository or manual)

Name	License	Tag Line	More Info
cufflinks	BSL-1.0	"[...] assembles transcripts, estimates their abundances, and tests for differential expression and regulation in RNA-Seq samples"	code / manual / publication
GFFUtils	AFL-3	"[...] a small set of utility programs for working with GFF and GTF files"	code / manual
SAMtools	MIT	"[...] suite of programs for interacting with high-throughput sequencing data"	code / manual / publication
segemehl	GPLv3	"[...] map short sequencer reads to reference genomes"	manual / publication

Configuration file¶

Some parameters within the workflow can be modified. Refer to the configuration template for a detailed explanation of each option.

Prepare Workflow¶

`finish_prepare`¶

Target rule as required by Snakemake.

Local rule

Input

segemehl genome index (idx); from generate_segemehl_index_genome
segemehl transcriptome index (idx); from generate_segemehl_index_transcriptome
Exon annotations (.bed); from convert_exons_gtf_to_bed
SAM header (.sam); from create_genome_header
Tab-separated table mapping chromosome name(s) and length(s) (.tsv); from extract_chr_len
Primary miRNA transcript (pri-miR) extended annotations (.gff3); from extend_mirs_annotations
Mature miRNA (miRNA) extended annotations (.gff3); from extend_mirs_annotations

`trim_genome_seq_ids`¶

Trim genome sequence IDs with a custom script.

InputOutput

(Workflow input) Genome sequence, gziped (.fa.gz/.fasta.gz)

Genome sequence, trimmed IDs (.fa); used in extract_transcriptome_seqs, create_genome_header, create_index_genome_fasta, generate_segemehl_index_genome, map_genome_segemehl, map_genome_oligomap and compress_reference_genome

`extract_transcriptome_seqs`¶

Create transcriptome from genomic sequence and annotations with cufflinks.

InputOutput

(Workflow input) Genome annotations, gziped (.gtf.gz)
Genome sequence, trimmed IDs (.fa); from trim_genome_seq_ids

Transcriptome sequence (.fa); used in trim_transcriptome_seq_ids

`trim_transcriptome_seq_ids`¶

Trim transcriptome sequence IDs with a custom script.

InputOutput

Transcriptome sequence (.fa); from extract_transcriptome_seqs

Transcriptome sequence, trimmed IDs (.fa); used in generate_segemehl_index_transcriptome, map_transcriptome_oligomap and map_transcriptome_segemehl

`generate_segemehl_index_transcriptome`¶

Generate transcriptome index for segemehl short read aligner.

The transcriptome index only needs to be generated once for each combination of transcriptome sequence and annotations, and sample sets.

InputOutput

Transcriptome sequence, trimmed IDs (.fa); from trim_transcriptome_seq_ids

segemehl transcriptome index (.idx); used in map_transcriptome_segemehl

`generate_segemehl_index_genome`¶

Generate genome index for segemehl short read aligner.

The genome index only needs to be generated once for each combination of annotations, and sample sets.

InputOutput

Genome sequence, trimmed IDs (.fa); from trim_genome_seq_ids

segemehl genome index (.idx); used in map_genome_segemehl

`get_exons_gtf`¶

Retrieve exon annotations from genome annotations with a custom script.

InputOutput

(Workflow input) Genome annotations, gziped (.gtf.gz)

Exon annotations (.gtf); used in convert_exons_gtf_to_bed

`convert_exons_gtf_to_bed`¶

Convert exon annotations .gtf to .bed with a custom script.

InputOutput

Exon annotations (.gtf); from get_exons_gtf

Exon annotations (.bed); used in transcriptome_to_genome_maps

`create_genome_header`¶

Create SAM header for the genome with SAMtools.

Required by SAMtools to work with the alignment files.

InputOutput

Genome sequence, trimmed IDs (.fa); from trim_genome_seq_ids

SAM genome header (.sam); used in add_header_all_maps

`map_chr_names`¶

Map UCSC-like chromosome names with Ensembl-like ones in miRNA annotations with a custom script.

Required by BEDTools to intersect alignments with miRNA annotations. Several mapping tables are available here.

InputOutput

(Workflow input) miRNA annotations (.gff3)
(Workflow input) Tab-separated chromosome name mappings table (.tsv)

miRNA annotations, mapped chromosome name(s) (.gff3); used in extend_mirs_annotations, create_per_library_ascii_pileups, create_per_run_ascii_pileups and/or create_per_condition_ascii_pileups

`create_index_genome_fasta`¶

Create a FASTA index for the genome with SAMtools.

InputOutput

Genome sequence, trimmed IDs (.fa); from trim_genome_seq_ids

FASTA genome index (.fa.fai); used in extract_chr_len

`extract_chr_len`¶

Extract chromosome(s) length from the genome sequence.

Required to ensure that the extended annotations in generated in the extend_mirs_annotations rule do not exceed the chromosome(s) boundaries.

InputOutput

FASTA genome index (.fa.fai); from create_index_genome_fasta

Tab-separated table mapping chromosome name(s) and length(s) (.tsv); used in extend_mirs_annotations

`extend_mirs_annotations`¶

Extend miRNA annotations, ensure feature names uniqueness and split the file by feature type with a custom script.

InputParametersOutputExtension ExamplesName Uniqueness Examples

miRNA annotations, mapped chromosome name(s) (.gff3); from map_chr_names

config_template.yaml
- extension: Number of nucleotides by which mature miRNA annotated regions are extended at most (default: 6)

Primary miRNA transcript (pri-miR) extended annotations (.gff3); used in intersect_extended_primir
Mature miRNA (miRNA) extended annotations (.gff3); used in intersect_extended_mirna

Example 1 | Mature miRNA extension

IN:
    pri-miR entry:
        19  .   miRNA_primary_transcript    2517    2614    .   +   .   ID=MI0003141;Alias=MI0003141;Name=hsa-mir-512-2
    mature miRNA entry:
        19  .   miRNA   2536    2558    .   +   .   ID=MIMAT0002822_1;Alias=MIMAT0002822;Name=hsa-miR-512-5p;Derives_from=MI0003141
    extension:
        6
OUT:
    pri-miR entry:
        19  .   miRNA_primary_transcript    2517    2614    .   +   .   ID=MI0003141;Alias=MI0003141;Name=hsa-mir-512-2_-0_+0
    mature miRNA entry:
        19  .   miRNA   2530    2564    .   +   .   ID=MIMAT0002822_1;Alias=MIMAT0002822;Name=hsa-miR-512-2-5p;Derives_from=MI0003141


Example 2 | Mature miRNA and pri-miR extension

IN:
    pri-miR entry:
        19  .   miRNA_primary_transcript    9   122 .   +   .   ID=MI0003140;Alias=MI0003140;Name=hsa-mir-512-1
    mature miRNA entry:
        19  .   miRNA   12  74  .   +   .   ID=MIMAT0002822;Alias=MIMAT0002822;Name=hsa-miR-512-5p;Derives_from=MI0003140
    extension:
        6
OUT:
    pri-miR entry:
        19  .   miRNA_primary_transcript    6   122 .   +   .   ID=MI0003140;Alias=MI0003140;Name=hsa-mir-512-1_-3_+0
    mature miRNA entry:
        19  .   miRNA   6   80  .   +   .   ID=MIMAT0002822;Alias=MIMAT0002822;Name=hsa-miR-512-1-5p;Derives_from=MI0003140


Example 3 | Mature miRNA exceeding chromosome boundaries extension

IN:
    pri-miR entry:
        19  .   miRNA_primary_transcript    2   122 .   +   .   ID=MI0003140;Alias=MI0003140;Name=hsa-mir-512-1
    mature miRNA entry:
        19  .   miRNA   3   74  .   +   .   ID=MIMAT0002822;Alias=MIMAT0002822;Name=hsa-miR-512-5p;Derives_from=MI0003140
    extension:
        6
OUT:
    pri-miR entry:
        19  .   miRNA_primary_transcript    1   122 .   +   .   ID=MI0003140;Alias=MI0003140;Name=hsa-mir-512-1_-1_+0
    mature miRNA entry:
        19  .   miRNA   1   80  .   +   .   ID=MIMAT0002822;Alias=MIMAT0002822;Name=hsa-miR-512-1-5p;Derives_from=MI0003140

Example 4 | Replica number in the ID; 'Derives_from' update

IN:
    pri-miR entries:
        chr21   .   miRNA_primary_transcript    8206563 8206618 .   +   .   ID=MI0033425;Alias=MI0033425;Name=hsa-mir-10401
        chr21   .   miRNA_primary_transcript    8250772 8250827 .   +   .   ID=MI0033425_2;Alias=MI0033425;Name=hsa-mir-10401
    mature miRNA entries:
        chr21   .   miRNA   8206563 8206582 .   +   .   ID=MIMAT0041633;Alias=MIMAT0041633;Name=hsa-miR-10401-5p;Derives_from=MI0033425
        chr21   .   miRNA   8206598 8206618 .   +   .   ID=MIMAT0041634;Alias=MIMAT0041634;Name=hsa-miR-10401-3p;Derives_from=MI0033425
        chr21   .   miRNA   8250772 8250791 .   +   .   ID=MIMAT0041633_1;Alias=MIMAT0041633;Name=hsa-miR-10401-5p;Derives_from=MI0033425
        chr21   .   miRNA   8250807 8250827 .   +   .   ID=MIMAT0041634_1;Alias=MIMAT0041634;Name=hsa-miR-10401-3p;Derives_from=MI0033425
OUT:
    pri-miR entries:
        chr21   .   miRNA_primary_transcript    8206563 8206618 .   +   .   ID=MI0033425;Alias=MI0033425;Name=hsa-mir-10401
        chr21   .   miRNA_primary_transcript    8250772 8250827 .   +   .   ID=MI0033425_2;Alias=MI0033425;Name=hsa-mir-10401-2
    mature miRNA entries:
        chr21   .   miRNA   8206563 8206582 .   +   .   ID=MIMAT0041633;Alias=MIMAT0041633;Name=hsa-miR-10401-5p;Derives_from=MI0033425
        chr21   .   miRNA   8206598 8206618 .   +   .   ID=MIMAT0041634;Alias=MIMAT0041634;Name=hsa-miR-10401-3p;Derives_from=MI0033425
        chr21   .   miRNA   8250772 8250791 .   +   .   ID=MIMAT0041633_1;Alias=MIMAT0041633;Name=hsa-miR-10401-2-5p;Derives_from=MI0033425_2
        chr21   .   miRNA   8250807 8250827 .   +   .   ID=MIMAT0041634_1;Alias=MIMAT0041634;Name=hsa-miR-10401-2-3p;Derives_from=MI0033425_2


Example 5 | Replica number in the Name; single mature arm

IN:
    pri-miR entries:
        chr21   .   miRNA_primary_transcript    8205315 8205406 .   +   .   ID=MI0022559;Alias=MI0022559;Name=hsa-mir-6724-1
        chr21   .   miRNA_primary_transcript    8249505 8249596 .   +   .   ID=MI0031516;Alias=MI0031516;Name=hsa-mir-6724-2
    mature miRNA entries:
        chr21   .   miRNA   8205325 8205347 .   +   .   ID=MIMAT0025856;Alias=MIMAT0025856;Name=hsa-miR-6724-5p;Derives_from=MI0022559
        chr21   .   miRNA   8249515 8249537 .   +   .   ID=MIMAT0025856_1;Alias=MIMAT0025856;Name=hsa-miR-6724-5p;Derives_from=MI0031516
OUT:
    pri-miR entries:
        chr21   .   miRNA_primary_transcript    8205315 8205406 .   +   .   ID=MI0022559;Alias=MI0022559;Name=hsa-mir-6724-1
        chr21   .   miRNA_primary_transcript    8249505 8249596 .   +   .   ID=MI0031516;Alias=MI0031516;Name=hsa-mir-6724-2
    mature miRNA entries:
        chr21   .   miRNA   8205325 8205347 .   +   .   ID=MIMAT0025856;Alias=MIMAT0025856;Name=hsa-miR-6724-1-5p;Derives_from=MI0022559
        chr21   .   miRNA   8249515 8249537 .   +   .   ID=MIMAT0025856_1;Alias=MIMAT0025856;Name=hsa-miR-6724-2-5p;Derives_from=MI0031516


Example 6 | Both mature miRNA arms but just one with the replica number

IN:
    pri-miR entries:
        chr2    .   miRNA_primary_transcript    135665397   135665478   .   +   .   ID=MI0000447;Alias=MI0000447;Name=hsa-mir-128-1
        chr3    .   miRNA_primary_transcript    35744476    35744559    .   +   .   ID=MI0000727;Alias=MI0000727;Name=hsa-mir-128-2
    mature miRNA entries:
        chr2    .   miRNA   135665446   135665466   .   +   .   ID=MIMAT0000424;Alias=MIMAT0000424;Name=hsa-miR-128-3p;Derives_from=MI0000447
        chr2    .   miRNA   135665411   135665433   .   +   .   ID=MIMAT0026477;Alias=MIMAT0026477;Name=hsa-miR-128-1-5p;Derives_from=MI0000447
        chr3    .   miRNA   35744527    35744547    .   +   .   ID=MIMAT0000424_1;Alias=MIMAT0000424;Name=hsa-miR-128-3p;Derives_from=MI0000727
        chr3    .   miRNA   35744490    35744512    .   +   .   ID=MIMAT0031095;Alias=MIMAT0031095;Name=hsa-miR-128-2-5p;Derives_from=MI0000727
OUT:
    pri-miR entries:
        chr2    .   miRNA_primary_transcript    135665397   135665478   .   +   .   ID=MI0000447;Alias=MI0000447;Name=hsa-mir-128-1
        chr3    .   miRNA_primary_transcript    35744476    35744559    .   +   .   ID=MI0000727;Alias=MI0000727;Name=hsa-mir-128-2
    mature miRNA entries:
        chr2    .   miRNA   135665446   135665466   .   +   .   ID=MIMAT0000424;Alias=MIMAT0000424;Name=hsa-miR-128-1-3p;Derives_from=MI0000447
        chr2    .   miRNA   135665411   135665433   .   +   .   ID=MIMAT0026477;Alias=MIMAT0026477;Name=hsa-miR-128-1-5p;Derives_from=MI0000447
        chr3    .   miRNA   35744527    35744547    .   +   .   ID=MIMAT0000424_1;Alias=MIMAT0000424;Name=hsa-miR-128-2-3p;Derives_from=MI0000727
        chr3    .   miRNA   35744490    35744512    .   +   .   ID=MIMAT0031095;Alias=MIMAT0031095;Name=hsa-miR-128-2-5p;Derives_from=MI0000727


Example 7 | Different precursor and mature miRNA "NAME" in Name

IN:
    pri-miR entries:
        chr19   .   miRNA_primary_transcript    45628   45714   .   +   .   ID=MI0003161;Alias=MI0003161;Name=hsa-mir-517a
        chr19   .   miRNA_primary_transcript    54436   54502   .   +   .   ID=MI0003165;Alias=MI0003165;Name=hsa-mir-517b
    mature miRNA entries:
        chr19   .   miRNA   45642   45663   .   +   .   ID=MIMAT0002851;Alias=MIMAT0002851;Name=hsa-miR-517-5p;Derives_from=MI0003161
        chr19   .   miRNA   45681   45702   .   +   .   ID=MIMAT0002852;Alias=MIMAT0002852;Name=hsa-miR-517a-3p;Derives_from=MI0003161
        chr19   .   miRNA   54441   54462   .   +   .   ID=MIMAT0002851_1;Alias=MIMAT0002851;Name=hsa-miR-517-5p;Derives_from=MI0003165
        chr19   .   miRNA   54478   54499   .   +   .   ID=MIMAT0002857;Alias=MIMAT0002857;Name=hsa-miR-517b-3p;Derives_from=MI0003165
OUT:
    pri-miR entries:
        chr19   .   miRNA_primary_transcript    45628   45714   .   +   .   ID=MI0003161;Alias=MI0003161;Name=hsa-mir-517a
        chr19   .   miRNA_primary_transcript    54436   54502   .   +   .   ID=MI0003165;Alias=MI0003165;Name=hsa-mir-517b
    mature miRNA entries:
        chr19   .   miRNA   45642   45663   .   +   .   ID=MIMAT0002851;Alias=MIMAT0002851;Name=hsa-miR-517a-5p;Derives_from=MI0003161
        chr19   .   miRNA   45681   45702   .   +   .   ID=MIMAT0002852;Alias=MIMAT0002852;Name=hsa-miR-517a-3p;Derives_from=MI0003161
        chr19   .   miRNA   54441   54462   .   +   .   ID=MIMAT0002851_1;Alias=MIMAT0002851;Name=hsa-miR-517b-5p;Derives_from=MI0003165
        chr19   .   miRNA   54478   54499   .   +   .   ID=MIMAT0002857;Alias=MIMAT0002857;Name=hsa-miR-517b-3p;Derives_from=MI0003165
